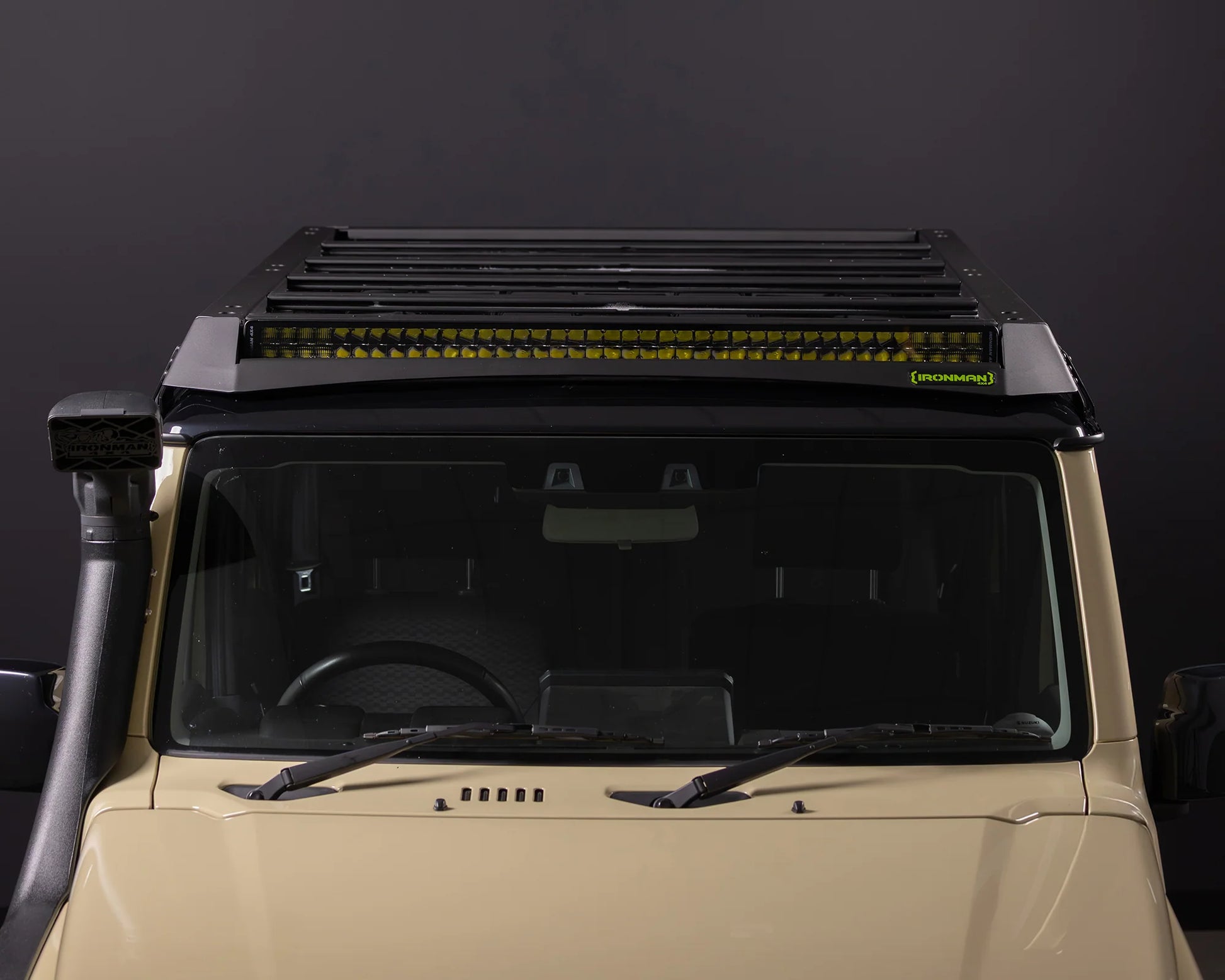

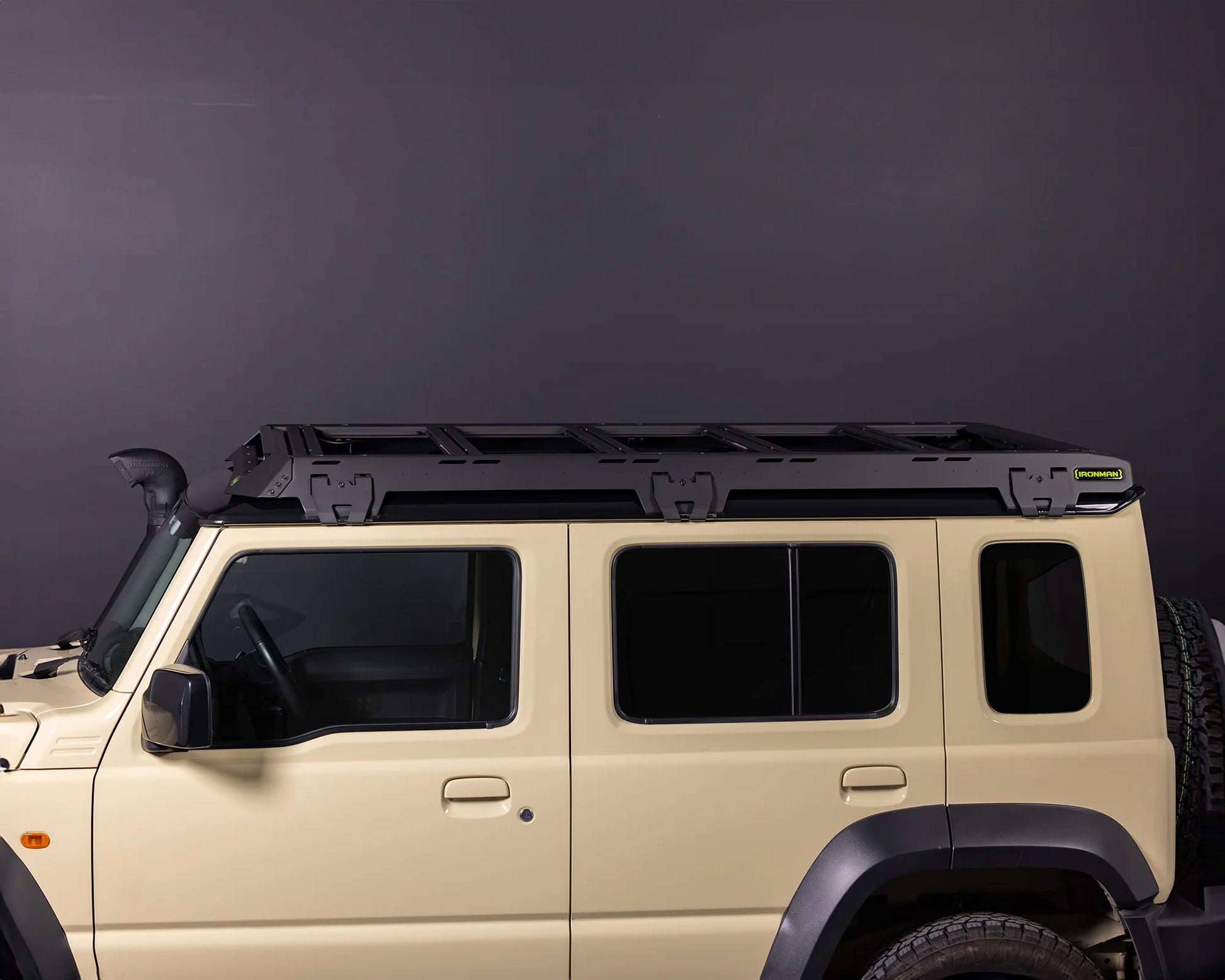

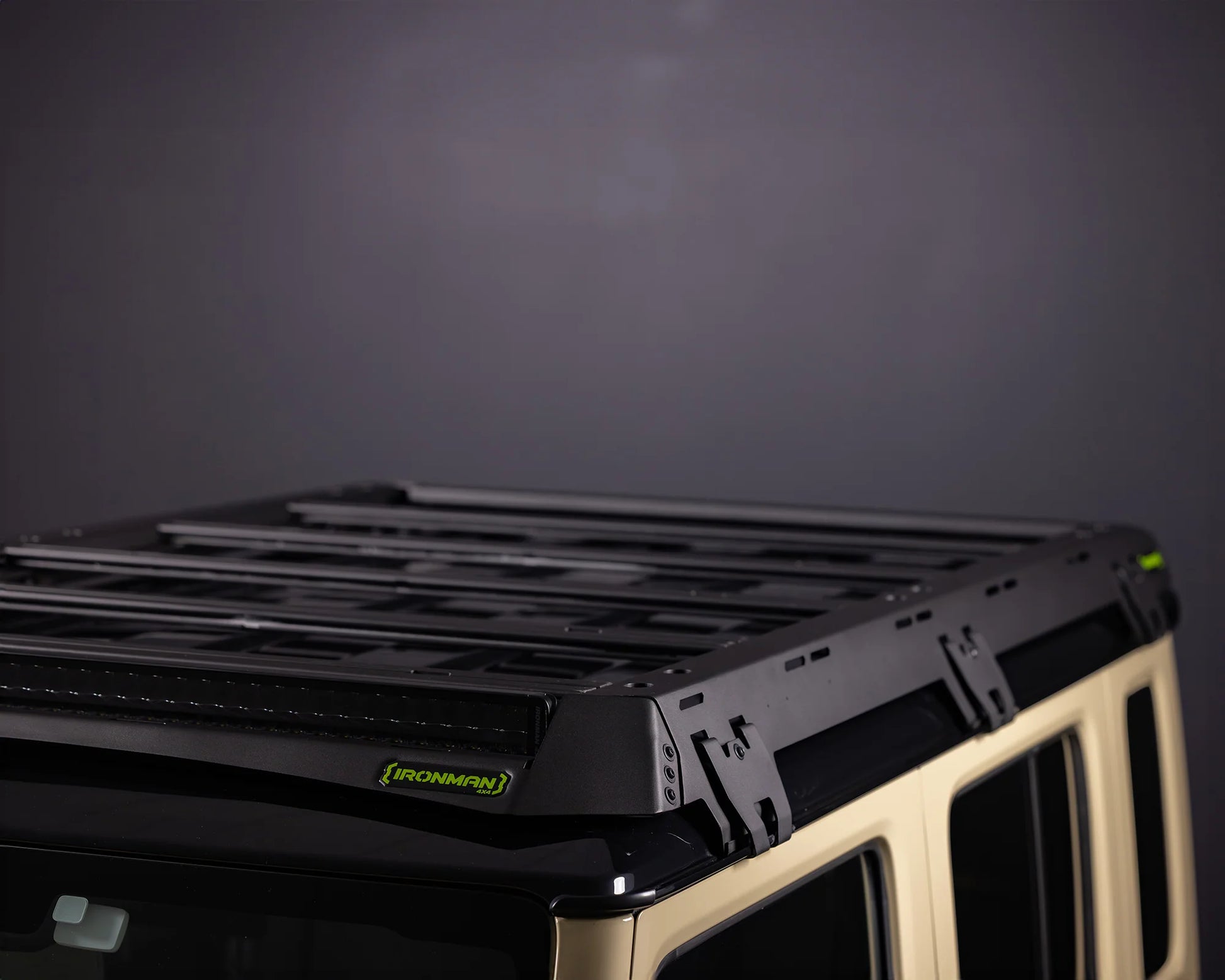

Raid Roof Rack - Pre-Assembled For Suzuki Jimny XL 5DR (23+) SKU: IRR117-A

Introducing the Raid Roof Rack: True to the Raid name, the Raid Roof Rack has been designed for both form and function. This sleek roof rack follows the natural curves of the vehicle's roofline along the side of the vehicle as well as the front. With all crossbeam fasteners and mounts hidden by the industrial blade design, the Raid Roof Rack is a statement in its own right. Careful consideration has gone into the design of the wind deflector, which offers not just a perfectly formed finish but also one of the quietest roof racks you’ll ever experience.


Modular crossbeam: The Raid Roof Rack is modular and can be assembled with as many or as few crossbeams to suit your preferred needs, allowing you to further reduce the weight of this already light, 30kg rack. Each crossbeam features a standard T-slot on the top and incorporated drainage paths, while an extrusion running down the side of each beam is designed to fit an M8 bolt.

Accessory Ready: The wind deflector features a removable diffuser panel which perfectly accommodates a 42” Light bar. The side blades are pre-drilled and designed to customise with accessories including rock lights, handles, shovel holders and more.

Construction: The Raid Roof Rack is constructed completely of 4mm AL5052 aluminium, with absolutely no plastic. The side blades, front diffuser and rear headboard all feature multiple folds for additional strength and have been designed to discreetly hide all the crossbeam fasteners and roof rack mounts. Each cross beam is secured by 6 hidden and RED thread locker secured fasteners, and are rated to 25kg per beam, with a total roof load limit of over 100kg dynamic load. Always check your vehicle manufacturer’s roof load limit.

Pre-Assembled: This Raid Roof Rack comes full assembled straight out of the box, getting you on the road faster than ever.  Australian Design


Application No. 202415937 (DCC IRN: 35619186)
Australian Design Application No. 202415919 (DCC IRN: 35620229)

PREORDER NOW Q3 2026 Availability
