Double Black Offroad

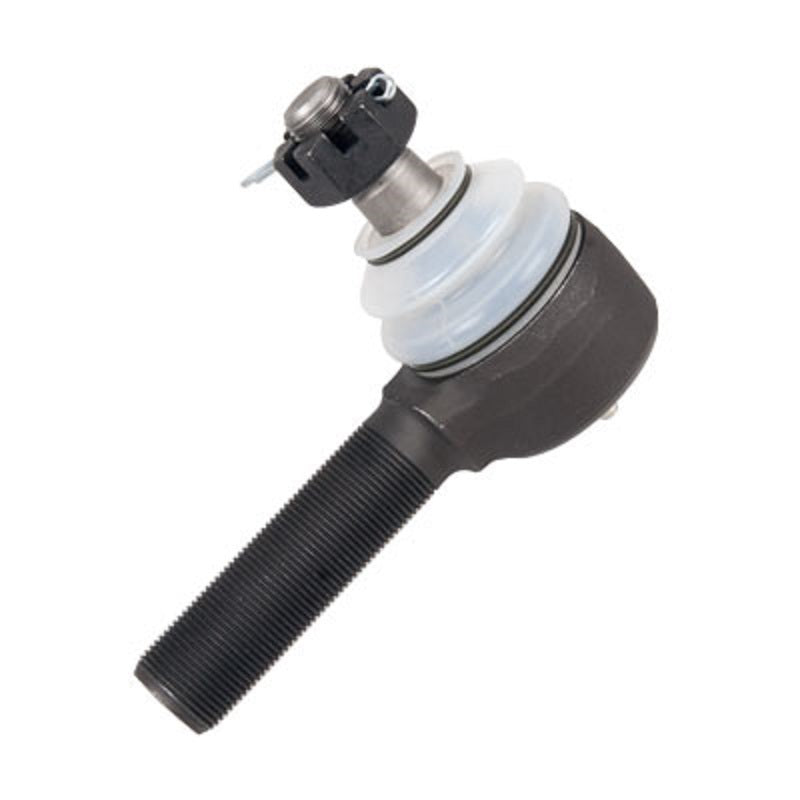

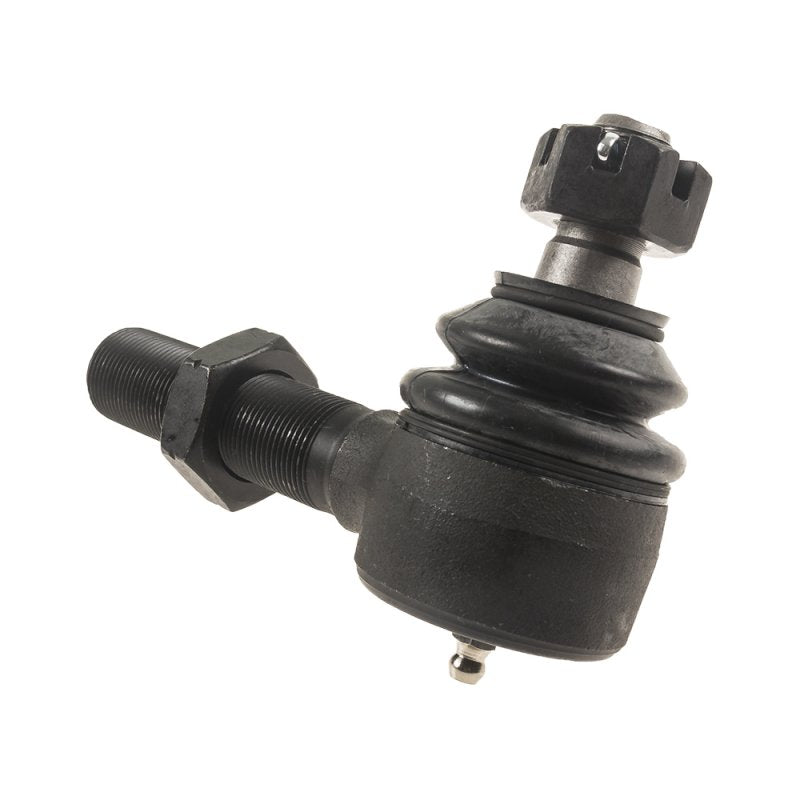

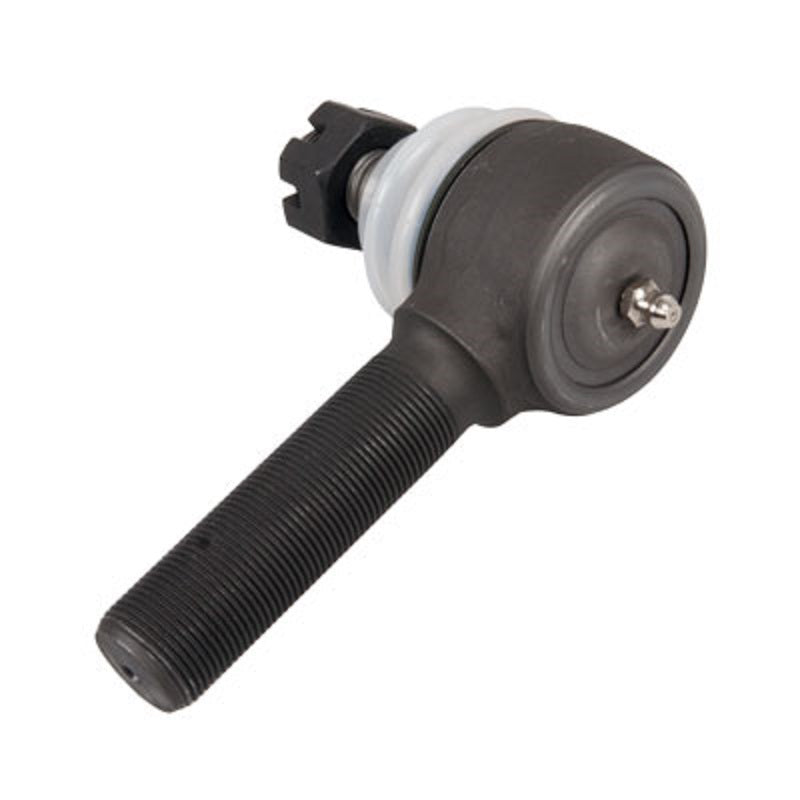

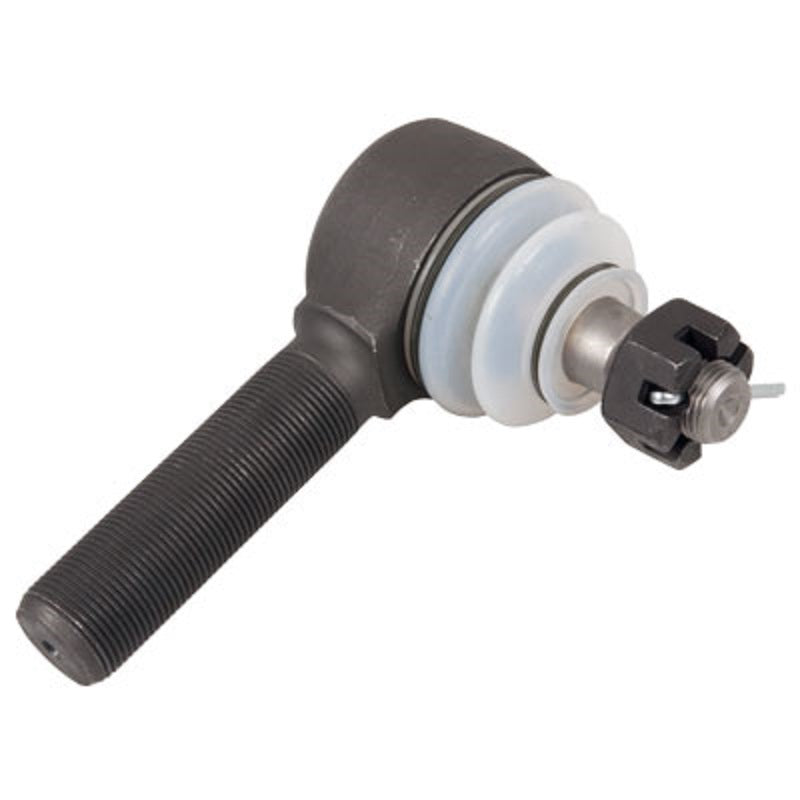

Synergy Heavy Duty Metal-on-Metal Tie Rod End

PPM-4131-L
Product Details & Specs
  • Synergy Heavy Duty Metal-on-Metal Tie Rod End
  • Fully greasable sintered metal on metal bushing design has high wear resistance
  • Specially designed grease grooves in the OD of the ball to allow for maximum lubrication
  • Spring loaded bearing design keeps pressure on bearings and keeps the joint tight as it wears Outperforms the factory and all other aftermarket style tie rod ends by offering: A larger shank with no stress riser (doesn't neck down at base), Elimination of the nylon ball race
  • Tie Rod end boot is made from tear/wear resistant material made from silicone & polyurethane
  • Includes all necessary hardware for installation
  • 7/8-18 UNF LH Thread
  • Designed specifically to be used in the following Synergy products: PPM-8001, PPM-8002, PPM-8451, PPM-8452


Part # Description
PPM-4131-L HD Tie Rod End, Left Hand Thread
PPM-4131-R HD Tie Rod End, Right Hand Thread

PPM-4131 Exploded View
PPM-4131 Exploded View
Comparison
Comparison

GM 1 Ton Replacement w/ Nylon Bushing
